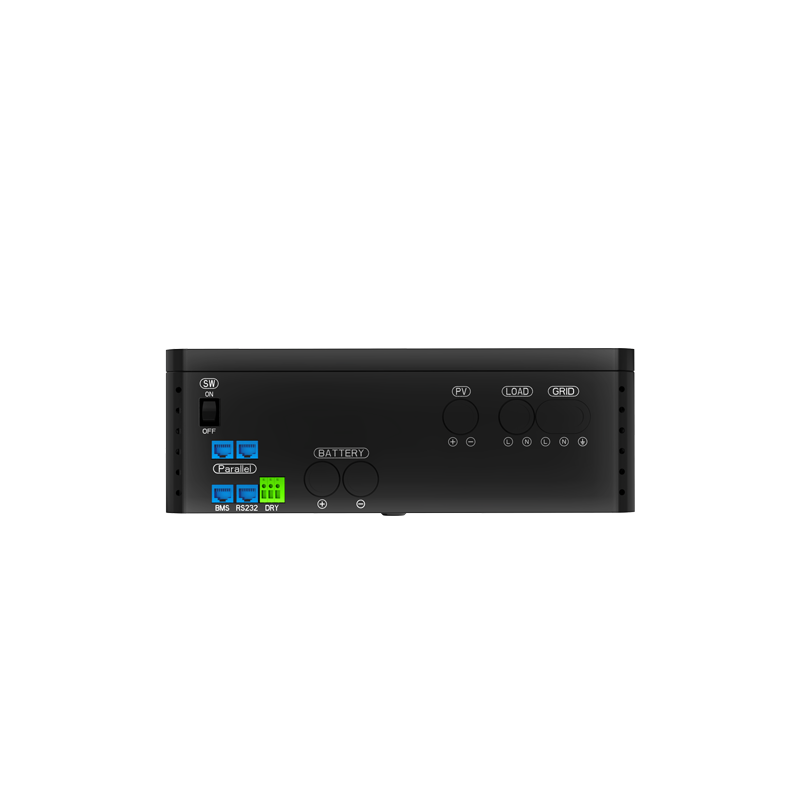

Gospower GPEX-6KL1 Solar Inverter

Name: Gospower GPEX-6KL1 Solar Inverter
Brand: JCE POWER
SKU: GPEX-6KL1

Model

GPEX-6KL1

Voltage

230V AC; battery: 48V DC

Power Rating

6kW / 6kVA

Warranty

5 Years Standard (10 Years Optional)

Recommended max. PV input power

8000W

Max. input voltage(Voc)

580V

MPPT operating voltage range

120-550V

Number of MPPT

Max. number of input strings per MPPT

Max. input current per MPPT

13/13A

Max. short-circuit current per MPPT

20A

Rated input power

6000W

Rated input current

26.1A

Rated grid voltage

230V(L,N,PE) 50/60Hz

THDi

<3%

Power factor

-0.8~+0.8

Battery type

SLA &LiFePO4

Battery voltage range

40~60Vdc

Rated battery voltage

48Vdc

Max. charge/discharge current

100A

BMS communication mode

485;CAN

Rated output power

6000W/6000VA

Rated output current

26.1A

Rated output voltage/frequency

230V(L,N,PE) 50/60Hz

Surge power

6300VA，10min 7500VA，1min 9000VA，1S

THDv (@ linear load)

<3%

Switching time

<10ms

Max. efficiency

98.00%

Max. MPPT efficiency

99.50%

European efficiency

97.10%

Protection

√DC switch √PV reverse connection protection √ Battery reverse connection protection √Output short-circuit protection √Output overvoltage protection √Insulation impedance detection √Residual current detection √Anti-island protection

Surge protection

PV: Type lll, AC: Type lll

IP rating

IP65

Operating temperature range

-25-60°C

Relative humidity range

0%~95%

Installation type

Wall-mounted

Cooling mode

Natural cooling

Communication

Wi-Fi; R485; CAN; GPRS

Display

LCD;APP

Inverter dimensions (L*W*H)(mm)

535*485*198.5

Net weight (kg)

Product Description

Product selection and support in the Philippines

Review the model-specific specifications and manufacturer documentation before purchase. Check supply phase, PV input limits, system configuration and installation requirements for your project.
