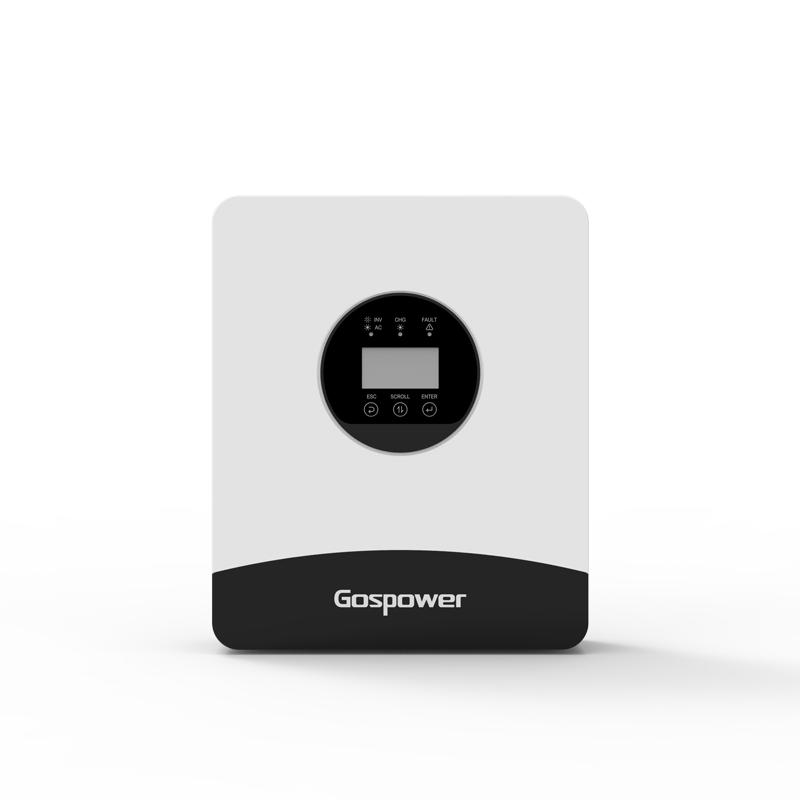

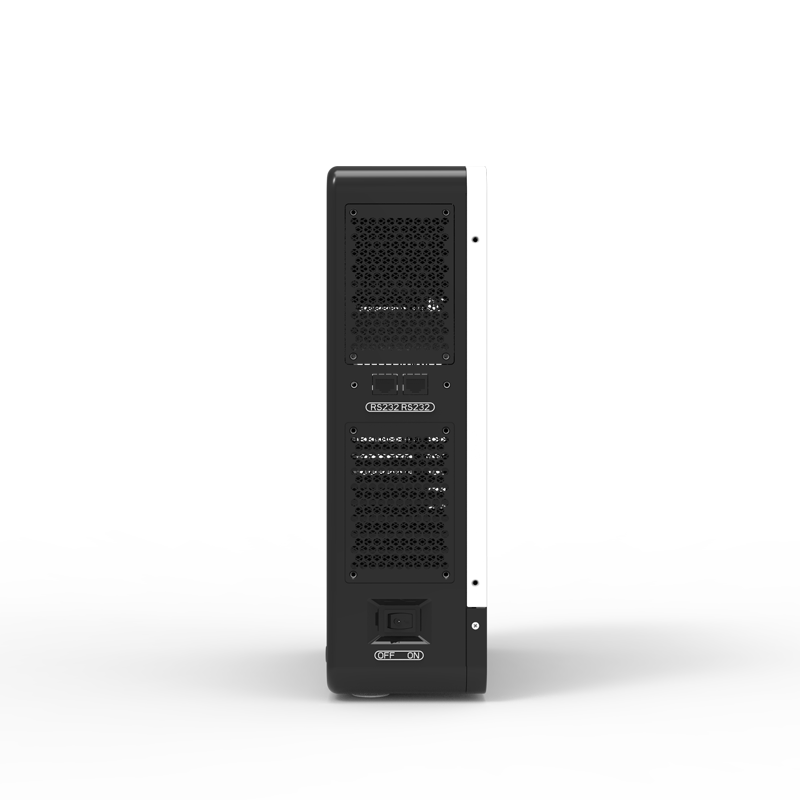

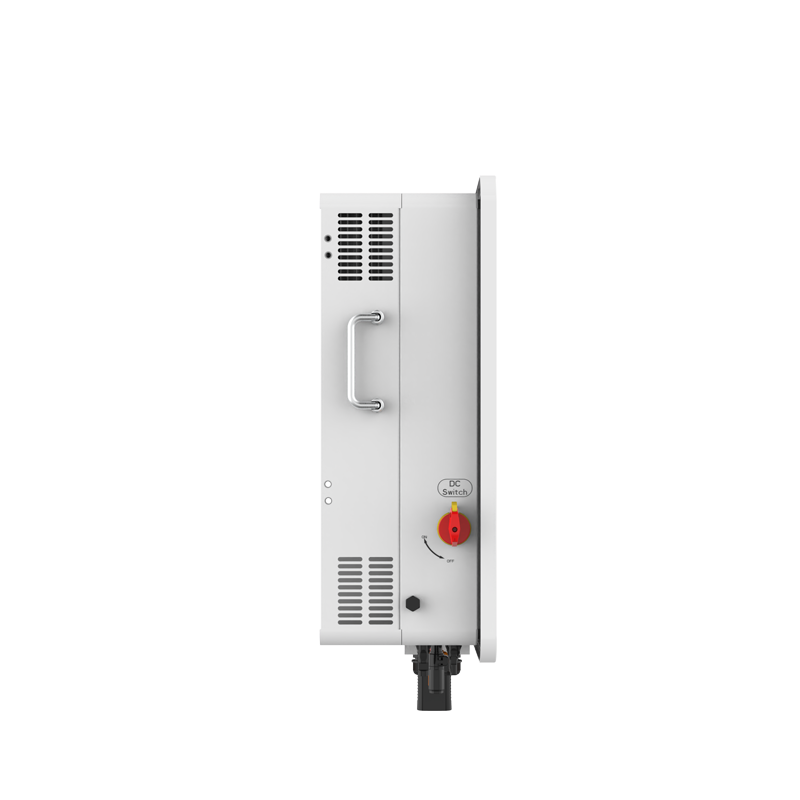

Gospower GPEO-3KL1 Solar Inverter

Name: Gospower GPEO-3KL1 Solar Inverter
Brand: JCE POWER
SKU: GPEO-3KL1

Model

GPEO-3KL1

Voltage

220/230/240V AC; battery: 24V DC

Power Rating

3kW / 3.6kVA

Warranty

3 years

Recommended max. PV input power

4500W

Max. input voltage(Voc)

500V

MPPT operating voltage range

70V-425V (@75V start up)

Number of MPPT

Max. number of input strings per MPPT

Max. input current per MPPT

18A

Max. short-circuit current per MPPT

20A

Max. input power

4600W

Max. input current

20A

Rated grid voltage

220/230/240Vac

Rated grid frequency

50/60Hz

Acceptable range

170-280Vac(For UPS); 90-280Vac (For Home Appliances)

Battery type

LiFePO4 /Lead-acid

Battery voltage range

20~30Vdc

Max. charge/discharge current

125A/135A

BMS communication mode

RS485

Rated output power

3000W/3600VA

Rated output current

15.6A

Rated output voltage/frequency

220/230/240Vac 50/60Hz

Surge power

6000VA 2s

THDv (@ linear load)

<3%

Switching time

10ms typical (For UPS) 20ms typical (For Home Appliances)

Peak efficiency

95%

Max. MPPT efficiency

99.9%

Inner protection

√Output short-circuit protection √Output overvoltage protection

Surge protection

PV: Type lll, AC: Type lll

IP rating

IP54

Operating temperature range

-10°C~ 55°C

Relative humidity range

10%~95%

Max. operating altitude

>2000m derating

Standby self-consumption

<10W

Installation type

Wall-mounted

Cooling mode

Fan cooling

Communication

RS232/RS485

Display

LCD

Inverter dimensions (L*W*H)(mm)

395*315*105

Net weight(kg)

7.9
