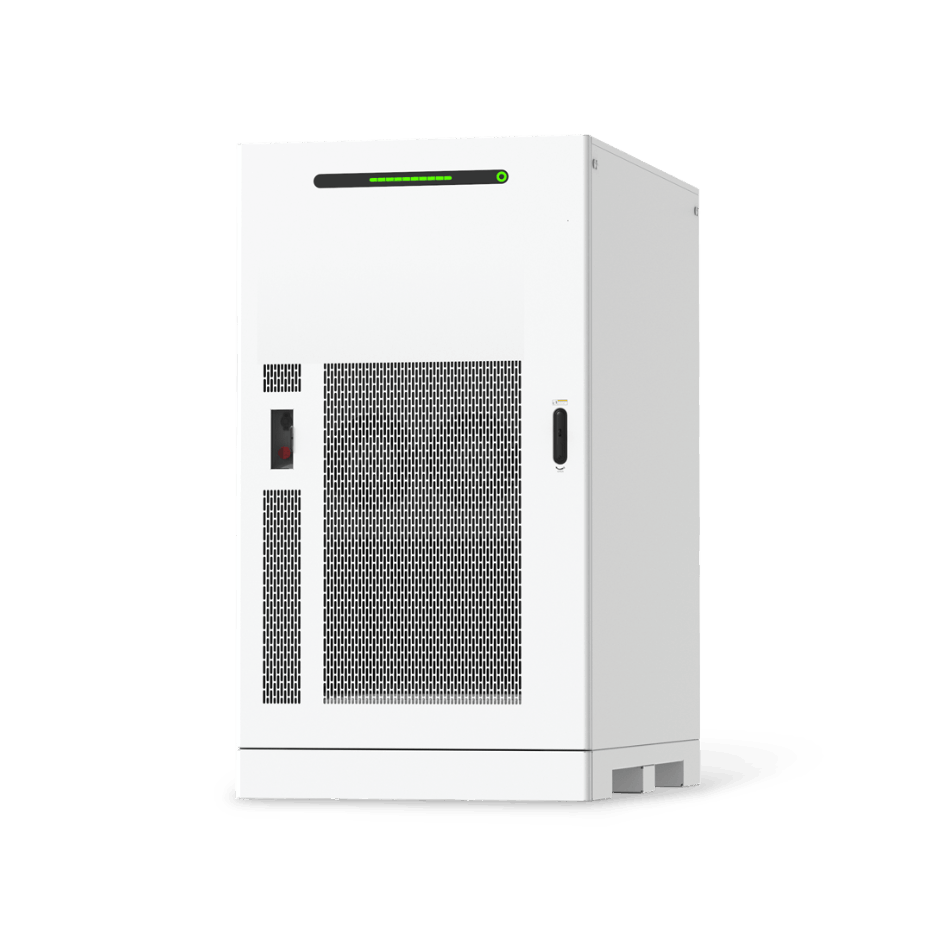

Huawei LUNA2000-241 Series Commercial Energy Storage
Product Description
Integrated commercial and industrial energy storage system with hybrid cooling. This specification table describes LUNA2000-241-2S1: 241.0kWh rated storage and a 108kW PCS for engineered solar-plus-storage and backup projects.
Huawei official product information
Product selection and support in the Philippines
Review the model-specific specifications and manufacturer documentation before purchase. Check usable energy, operating voltage, battery management communication and compatibility with the selected inverter.
Compare commercial energy storage options · Solar and battery planning guides · Contact JCE POWER in Iloilo or Paranaque
Technical Specifications
| Exact specified model | LUNA2000-241-2S1 |
| Rated storage capacity | 241.0kWh |
| Rated PCS output | 108kW |
| PCS model | PCS2000-108K-MB1 |
| Cell chemistry / capacity | LFP / 314Ah |
| Battery configuration / packs | 240S1P / 4 packs |
| Battery operating voltage | 648–852V DC |
| Rated DC current | 140A |
| AC voltage / frequency | 380 / 400 / 415V, 3P4W; 50 / 60Hz |
| Maximum cycle efficiency | 91.3% |
| Temperature control / balancing | Hybrid cooling / active balancing |
| Protection rating | IP55 |
| Dimensions (W × D × H) | 1,150 × 1,800 × 2,100mm |
| Weight | <2.8 tonnes |
| Operating temperature | −30°C to +55°C; derating above +50°C |
| Communication | Ethernet / optical fiber; Modbus TCP |
Where It's Used
Commercial & Industrial Energy Storage
Integrated commercial and industrial energy storage system with hybrid cooling. This specification table describes LUNA2000-241-2S1: 241.0kWh rated storage and a 108kW PCS for engineered solar-plus-storage and backup projects.
